SMTP Testing

Troubleshooting SMTP Connectivity

On a few occasions, I've encountered application developers having difficulty with their application when it tries to send an email via an internal Exchange (or other SMTP) server.  This email might be part of a workflow or notification of a job completing, for example.

If you want to see what's happening, outside of the developer environment, running a few SMTP commands from the developer's computer can help.

First, you need to telnet to port 25 on your Exchange or SMTP server.  Then, send an email to a sample recipient and see how you get on.  Hopefully, if there is a problem with authentication or anti-virus or something similar, you will get stopped along the way and you'll be able to troubleshoot the cause.

The commands in yellow, above, are my user input.  The rest of the text is messages that SMTP responds with.  Note that it is sensitive to spaces in the correct places and I've found that using backspace to correct typos from a Windows command prompt does not go down well.  Type carefully!

1. ehlo domain.local - here, I am announcing where I am coming from
2. mail from: sender@domain.local - this is the sender address
3. rcpt to: recipient@domain.local - this is the recipient of the email
4. data - announcing that I have finished the addressing and am about to start with the data
5. subject: Test Message - the subject line of the email
6. . - I have finished my input and the email may be sent

Getting stopped or getting different messages at different stages along this path will mean different things, but this will hopefully put you in the right direction.

Group Policy Troubleshooting

Group Policy Troubleshooting

From time to time you may find yourself trying to identify what group policy (GPO) settings have been applied to a particular user or computer and what policy they have been applied from.  The Old Faithful of group policy troubleshooting is running gpresult from a command line.  While this is the tool that has been recommended on courses for years (even up to a Windows 2008 R2 course I attended a couple of years ago), I've always found the results from this lacking in detail.

RSOP.MSC

What I find most useful is to run rsop.msc from your Start...Run box.  RSOP is Resultant Set Of Policy and it loads as a MMC snap-in.  This snap-in will let you browse through the GPO objects and it will let you see the configured settings and, crucially, the name of the policy that it has applied from.  This will help you through difficulties that you might have with understanding the hierarchy of policies from Site, Domain, OU and Local.

In this next image, you can see the names of the policies that have applied to the computer (or User Configuration, if you select the properties on that).

rsop.msc will also let you see errors that caused particular policies not to load and security settings that may also be preventing a policy from loading.

Group Policy Modeling

One failing of running rsop.msc on your local system is that Group Policy Preference settings are not visible.  These preferences were introduced to Group Policy in Windows Server 2008 and provide GUI based configuration settings.  For example, you can get very specific with local user account settings or Internet Explorer settings using Group Policy Preferences.  Unfortunately, rsop.msc hasn't caught up with this yet.

However, using the Group Policy Modeling wizard in your Group Policy Management tool on a domain controller, or through your local administrative tools, you can see what Group Policy Preferences will be applied.  You can also go through a lot of 'what if' scenarios to see what would happen if, for example, group memberships are changed.

Troubleshooting Windows Domain Account Lockouts

Troubleshooting Windows Domain Account Lockouts

Finding out why a user is continually being locked out on a particular day can be a challenge.  A person may have logged onto a computer a few weeks ago but has forgotten about it.  Identifying where rogue session is can be difficult.  On a more sinister note, a user might be locked out from time to time and know that they didn't type a password incorrectly and pinpointing the source of these lockouts is important.  The built-in filtering on the Windows Event Logs, while useful in some circumstances, isn't always the most useful at helping out with this.

Worry not!  Microsoft provide a number of tools to assist with this.  You can download them from here and the two that I'm going to talk about are Eventcomb and LockoutStatus. These two tools do two different jobs and can be very useful individually or together.

http://www.microsoft.com/en-us/download/details.aspx?id=18465

Eventcomb

Eventcomb is a event log interrogation tool that will look for events that match your criteria and output them to a file.
To search for account lockouts, use settings similar to below.  You can fill in most of these details by going to Searches, Built In Searches and selecting Account Lockouts.  Note that if you are searching on DCs that are newer that Windows Server 2008, you will need to add event IDs 4740 and 4625 to the built in list of Event IDs.
If you right-click in the window "Select to search/right click to add", you can choose all DCs in your domain.

Lockout Status

Lockout status is a handy tool for seeing when an account was locked out, what domain controller it was locked out on and when passwords are due to expire.  OK, the password expiry might need a bit of mental arithmetic by adding number of days in your maximum password age policy to the 'Password Last Set' field, but it's a great help.

These are two great utilities that Microsoft provide for free that will help you troubleshoot lockouts and identify where problems are coming from.

Extend the System Drive of a Windows Server 2003 Virtual Machine

Increase the size of the system drive of a Windows Server 2003 virtual machine

So, you have a Windows Server 2003 machine in a VMware or Hyper-V environment and you want to increase the size of the C: or System drive.  After you have allocated more space on the virtual hardware side, your Windows server may recognise it but not let you work with it.  When you try to use diskpart to extend the disk, you might get an error that says:

The volume you have selected may not be extended.  Please select another volume and try again.

Fortunately, this is quite straightforward to get around.  Unlike Windows Server 2008 and 2012, this cannot be done on the fly (without 3rd party tools) so a reboot is required.  Here's what to do.

Short version

Boot off a Windows 2008 DVD, go to Repair and use diskpart to extend the volume into the free space.

Long Version

1. Boot the virtual machine from a Windows 2008 DVD.
2. When it boots up, select your language and choose to Repair the installation.
3. Select the command prompt.
4. Run diskpart to access command line disk tools
5. Type list disk to identify the number allocated to the disk that you want to extend
6. Type extend disk 0 (where 0 is the disk that has the free, extendable space)
7. Type exit and reboot to make use of the extra space.  Your virtual machine might need another reboot as it thinks there's new hardware there, so now would be a good time to do it.

As always, it would be prudent to backup up any data prior to this procedure - just in case.

Microsoft Exchange - Automatically Forward Emails From External Senders

Automatically forward emails from external senders to internal and external recipients

Consider a scenario where every email that you receive from an external email address to a specific email account, perhaps an alert/monitoring account, needs to be sent onto a number of people - some internal to your organisation and some external.

It's possible to do this with a rule in Outlook, but you can also do it administratively from your Exchange server.  Here's how to do it.

1. Assuming that all of your internal recipients are already on your Global Address List, create Contacts for the external recipients with their email addresses in the Exchange Management Console.
2. Create a distribution group that contains all of your internal and external contacts.

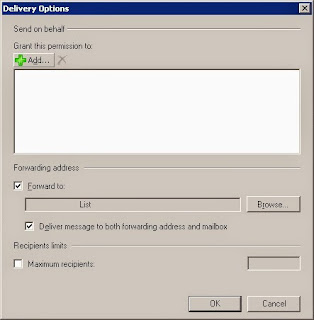

3. Go to the properties of the email account that will be receiving the original or trigger email and go to its delivery options.

4. Browse for the group that you want to forward to and if you want the original recipient mailbox to continue to receive the emails, rather than just forward them, tick the box for 'Deliver message to both forwarding address and mailbox'.

5. Now, to ensure that all recipients will receive the email, go to the properties of the distribution group and in the Message Delivery Restrictions for it, untick the box to 'Require that all senders are authenticated'.

This last bit is a bit of a gotcha and not doing it might be a cause of an undeliverable message like this.

Delivery has failed to these recipients or distribution lists:
list@xyz.ie
Your message wasn't delivered because of security policies. Microsoft Exchange will not try to redeliver this message for you. Please provide the following diagnostic text to your system administrator.

Diagnostic information for administrators:
Generating server: xyz.ie
list@xyz.ie

#550 5.7.1 RESOLVER.RST.AuthRequired; authentication required ##rfc822;xyz@abc.ie

That should be it.  It's a useful, centralised way to do this from your Exchange server.

Sysinternals Autoruns - Comprehensive Startup Identification

Sysinternals Autoruns - comprehensive startup processes identification

I was looking at my Dad's home PC that had some malware on it and despite my brother cleaning up most of the offending software, there were still some annoying messages at startup indicating that although the offending .DLL had been removed, there was still something calling it and trying to launch it at startup.  The RunDLL error message that was being seen was:

There was a problem starting
C:\PROGRA~1\COMMON~1\System\SysMenu.dll
The specified module could not be found.

MSConfig.exe is a built-in Windows tool for showing some startup processes.  Unfortunately, there are many places for a startup process to hide that MSConfig doesn't show.

Luckily for us, Mark Russinovich has created a fantastic tool called Autoruns that shows what processes are being launched and where they are being started from.

The initial screen will show you all of the different startup points - e.g. the Startup folder, HKLM\Software....\Run etc. with the programs and modules that are being launched from each

When you see a line highlighted in yellow, this indicates that the program/module being called no longer exists, but the call still exists.  You can even do a Internet search for details on a particular line right from the application!

The particular piece of rogue software that was troubling my Dad was being started as a scheduled task that had a trigger of 'At logon of any user' selected for its run time.

For me, Autoruns is an important tool in any Sysadmin's toolkit and it will run on Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 8.1.  Although probably less necessary, it will of course run on the server operating systems too - 2003, 2008 and 2012.

VMware ESXi - Brocade Fibre Channel (FC) HBA Installation

Installation of Brocade 425/825 Fibre Channel HBA Drivers on ESXi 5

This is a slightly out of date article, but might be of help to some people.

Brocade's adapter business seems to have been bought by QLogic, so you will need to go there to get the drivers.

1. Download the drivers  for the Brocade 425/825 FC HBA from here: http://driverdownloads.qlogic.com/QLogicDriverDownloads_UI/DefaultNewSearch.aspx
2. Upload the driver to your ESXi server using the Browse Datastore feature.
3. Enable SSH on the ESXi server (Configuration tab...Security Profile...Properties) and start the SSH service.
4. Put the ESXi server into Maintenance Mode.
5. Use Putty (or similar tool) to connect to the server and use these commands. Note that my driver file was called BCD-bfa-3.2.1.0-00000-offline_bundle-1108413.zip

• cd /vmfs/volumes/datastore/<YourUploadedFile>
• cp BCD-bfa-3.2.1.0-00000-offline_bundle-1108413.zip /tmp
• esxcli software vib install -d /tmp/BCD-bfa-3.2.1.0-00000-offline_bundle-1108413.zip

6. Once you get the success message, reboot the ESXi server and exit maintenance mode.
7. Confirm that the HBA has been installed by going to the host...Configuration Tab...Storage adapters.

That should be it!
